TH.209 Techno TEEBOX

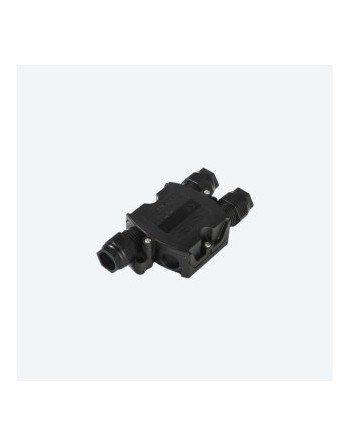

Techno TEEBOX ® TH209 4 Way Junction Connector
Approvals
Request STP/BIM File
Techno TEEBOX ® TH209 4 Way junction boxes and current distributors approved up to IP68 guarantee water and dust proof connections without the use of resin or gel.
The boxes are re-accessible thanks to their compact dimensions, they are particularly suitable for connections in small spaces or containing electronic and electromechanical components.
TEEBOX ® TH209 4 way electrical current distributors (pre-wired boxes with plug socket and connectors) are designed to speed up the connection and disconnection of electrical networks and devices of various kind.
The access to the terminal block inside the box is not required: it takes advantage of the simplicity and flexibility of a plug and socket connection.
Data sheet
- IP Rating
- 68
- Operating Temperature
- -40°C to +125°C
- Number of Poles
- 2-8
- Cable section
- 0.5 – 4.0 mm2
- Cable diameter min-max
- 7 -14.0 mm
