500 24A Terminal Blocks - standard base
Series 500 24A Terminal Blocks - standard base
Also available in a raised profile
Approvals
Request STP/BIM File
Series 500 terminal blocks are available in 2 grades of housing material, nylon 6 and nylon 6.6 (T type) which is suitable for high temperature applications.
Two variations of wire protectors are offered, type HDS have standard protectors and type MDS have barrier protectors.
They are available in standard height and raised base (suffixed K) which are suitable for applications where creepage and clearance distances must be observed. Drawings for the K version can be supplied upon request.
Versions without wire protectors are also offered with barriers in inserts (type SL).
Captive screws are fitted as standard.

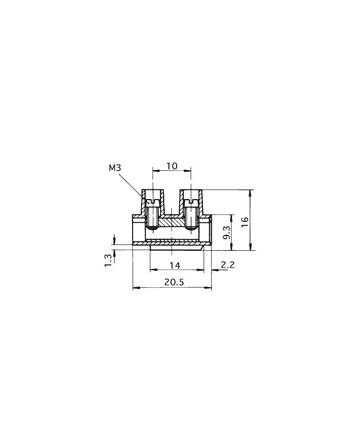

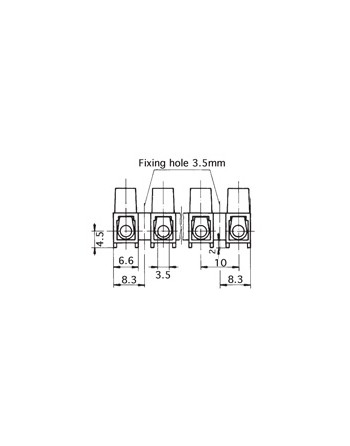

5001235
500HDS1235
500MDS1235
500K1235
500KHDS1235
500KMDS1235
Data sheet
- Material
- polyamide 6 V2
- Continuous Working Temp
- 85°C
- Current Rating
- 24A
- Voltage Rating
- 450v
- Contact Material
- Brass
- Core Cross-Section min
- 0.5mm
- Core Cross-Section max
- 2.5mm
- Approbation VDE
- yes
- Approbation ENEC
- yes
- Approbation UL
- yes
- Approbation CSA
- Yes
- Wire stripping length
- 7.0-7.5mm
- Pitch
- 10mm
- Number of Poles
- 2-12 Pole
