6 Pole G Type Flat Plug To Free End Leads
The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires.
The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).
Approvals
Request STP/BIM File
3 CORE LEADS (Live, Earth and Neutral)
SLPGF631530WL-001 - 3 metres.
SLPGF631550WL-001 - 5 metres.
SLPGF631570WL-001 - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
SLPGF641530WL-001 - 3 metres.
SLPGF641550WL-001 - 5 metres.
SLPGF641570WL-001 - 7 metres.
5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)
SLPGF651530WL-001 - 3 metres.
SLPGF651550WL-001 - 5 metres.
SLPGF651570WL-001 - 7 metres.

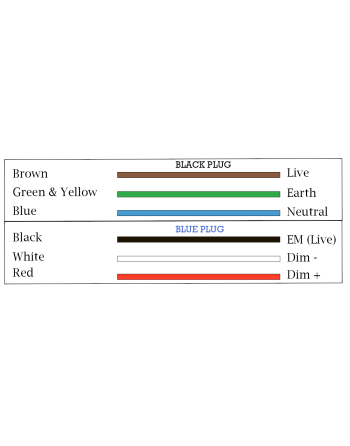

6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
SLPGF61530WL-001 - 3 metres.
SLPGF61550WL-001 - 5 metres.
SLPGF61570WL-001 - 7 metres.
We can provide leads in various lengths and conductor sizes.
Leads can also be provided wired to maintained live (Add E on end of part code).
We can also offer ultrasonic welded leads.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.5mm LS0H white as standard. Black cable can be supplied as an alternative.
- Prepared
- Outer sheath stripped 70mm Inner cores Stripped and ferruled
- Connector Rating
- 20 amps
- Latching
- Via optional locking slide
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- 6 pole G type socket and tee piece
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
