MCC/MDCC 6 Pole Connection Centre Leads

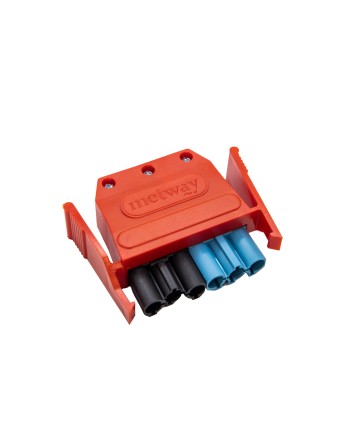

Our MCC Connection Centre and MDCC standalone addressable LCM, can be connected using the same leads. They are supplied with a 6-pole side latching plug, to a free end using 1.00mm² LS0H cable.
This can be supplied in a variety of cores, and lengths as per your requirements.
These are supplied with a black/blue industry standard, connector coding.
Alternatively there is an option for black/grey connectors.
Approvals
Request STP/BIM File
2 CORE LEADS (Dim 1 and Dim 2 )
MCC623B - 3 metres.
MCC625B - 5 metres.
MCC627B - 7 metres.
3 CORE LEADS (Live, Earth and Neutral)
MCC633B - 3 metres.
MCC635B - 5 metres.
MCC637B - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
MCC643B - 3 metres.
MCC645B - 5 metres.
MCC647B - 7 metres.
5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)
MCC653B - 3 metres.
MCC655B - 5 metres.
MCC657B - 7 metres.

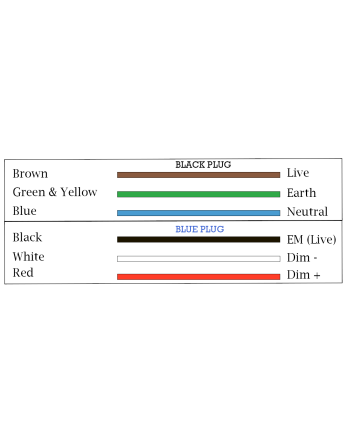

6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
MCC663B - 3 metres.
MCC665B - 5 metres.
MCC667B - 7 metres.
We can provide leads in various lengths and conductor sizes.
Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).
We can also offer ultrasonic welded leads Please contact our sales team for any requests.
Data sheet
- Cable
- 1.00mm LS0H white as standard. Black cable can be supplied as an alternative.
- Prepared
- Outer sheath stripped. 70mm Inner cores. Stripped and ferruled.
- Connector Rating
- 20 amps
- Latching
- Dual side latching
- Cable Type
- LS0H ECA Fire Class. DCA/CCA Fire Class available on request.
- Compatibility
- MCC and MDCC
- IP Rating
- IP20 (IP40 plugged in)
- Approvals
- EN61535:2020
