Ex-Or Leads
Metway can provide leads for other manufacturers lcms, such as Ex-Or.
The LCM lead is supplied with a 6-pole latching plug, to a free end on 1.00mm² LS0H cable.
This can be supplied in a variety of cores, and length as per your requirements.

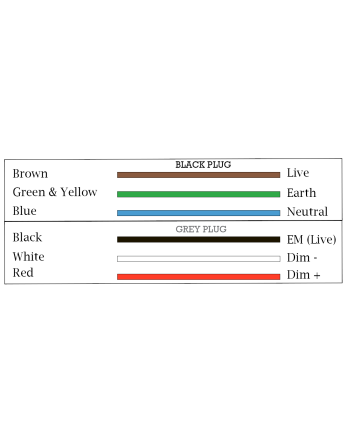

These are provided with a black/grey industry standard connector coding.
Approvals
Request STP/BIM File
2 CORE LEADS (Dim 1 and Dim 2 )
BL623-EXO - 3 metres.
BL625-EXO - 5 metres.
BL627-EXO - 7 metres.
3 CORE LEADS (Live, Earth and Neutral)
BL633-EXO - 3 metres.
BL635-EXO - 5 metres.
BL637-EXO - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
BL643-EXO - 3 metres.
BL645-EXO - 5 metres.
BL647-EXO - 7 metres.
5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)
BL653-EXO - 3 metres.
BL655-EXO - 5 metres.
BL657-EXO - 7 metres.
6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
BL663-EXO - 3 metres.
BL665-EXO - 5 metres.
BL667-EXO - 7 metres.
Leads can be provided wired to maintained live.
We can provide leads in alternative lengths to the above.
Please contact sales for enquiries.
Data sheet
- Cable
- 1.00mm LSOH white
- Prepared
- Outer sheath stripped 70mm inner cores stripped and ferruled
- Connector Rating
- 20 amps
- Latching
- Dual side latching
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- Ex-Or purchased LCM
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
