MCC 4 pole Connection Centre Leads

Our MCC5S and MCC10S Connection Centre LCM'S, use a 4 pole lead to connect to luminaires. They are supplied with a 4-pole side latching plug, to a free end using 1.00mm² LS0H cable.

This can be supplied in a variety of cores, and lengths as per your requirements.

These are supplied with a black industry standard, connector coding.



Approvals



Request STP/BIM File

3 CORE LEADS (Live, Earth and Neutral)

MCC433B - 3 metres.

MCC435B - 5 metres.

MCC437B - 7 metres.

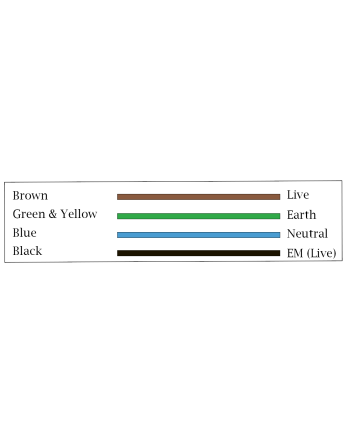

4 CORE LEADS (Live, Earth, Neutral and EM Live)

MCC443B - 3 metres.

MCC445B - 5 metres.

MCC447B - 7 metres.

We can provide leads in various lengths and conductor sizes.

Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).

We can also offer ultrasonic welded leads Please contact our sales team for any requests.

Data sheet

Cable
1.00mm LS0H white as standard. Black cable can be supplied as an alternative.
Prepared
Outer sheath stripped. 70mm Inner cores. Stripped and ferruled.
Connector Rating
20 amps
Latching
Dual side latching
Cable Type
LS0H ECA Fire Class. DCA/CCA Fire Class available on request.
Compatibility
MCC5S and MCC10S only
IP Rating
IP20 (IP40 plugged in)
Approvals
EN61535:2020
