- New
6 Pole MCC To G Type Extender Leads
Our MCC to 6 pole flat extender leads, can be latched to our 6 pole lcm and then connected to our 6 pole tee piece and other 6 pole flat leads if you need the option to daisy-chain.
They are supplied with a 6-pole side latching plug, to a female 6 pole socket using 1.5mm² LS0H cable.
This can be supplied in a variety of lengths as per your requirements.
These are supplied with a black/blue industry standard, connector coding.
Approvals
Request STP/BIM File

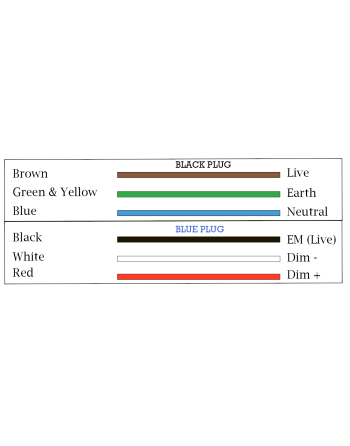

6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
MCC661XB - 1 metre.
MCC663XB - 3 metres.
MCC665XB - 5 metres.
MCC667XB - 7 metres.
We can provide leads in various lengths and conductor sizes.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.5mm LS0H white as standard. Black cable can be supplied as an alternative.
- Prepared
- Outer sheath stripped. 70mm Inner cores. Stripped and ferruled.
- Connector Rating
- 20 amps
- Latching
- Dual side latching on MCC plug, use locking slides on female socket
- Cable Type
- LS0H ECA Fire Class. DCA/CCA Fire Class available on request.
- Compatibility
- 6 pole GST type socket, plug, tee pieces, MCC5B, MCC8B, MCC10B and MDCC12B
- IP Rating
- IP20 (IP40 plugged in)
- Approvals
- EN61535:2020
Specific References
