Classic Latching Leads
Our classic latching lead, can be used in a variety of LCM's (For example: Phillips Dynalite). They are supplied with a 6-pole centre latching plug, to a free end using 1.00mm² LS0H cable. This can be supplied in a variety of cores, and lengths as per your requirements.

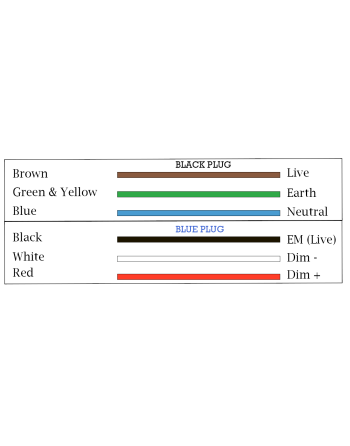

These are supplied with a black/blue industry standard, connector coding. Alternatively there is an option for black/grey connectors.
Approvals
Request STP/BIM File
2 CORE LEADS (Dim 1 and Dim 2)
BL623BLUH - 3 metres.
BL625BLUH - 5 metres.
BL627BLUH - 7 metres.
3 CORE LEADS (Live, Earth and Neutral)
BL633BLUH - 3 metres.
BL635BLUH - 5 metres.
BL637BLUH - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
BL643BLUH - 3 metres.
BL645BLUH - 5 metres.
BL647BLUH - 7 metres.
5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)
BL653BLUH - 3 metres.
BL655BLUH - 5 metres.
BL657BLUH - 7 metres.
6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
BL663BLUH - 3 metres.
BL665BLUH - 5 metres.
BL667BLUH - 7 metres.
We can provide leads in various lengths and conductor sizes.
Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).
We can also offer ultrasonic welded leads.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.00mm LS0H white as standard. Black cable can be supplied as an alternative.
- Prepared
- Outer sheath stripped 70mm Inner cores Stripped and ferruled
- Connector Rating
- 20 amps
- Latching
- Centre Latching
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- Phillips Dynalite and various centre latched black/blue LCM's
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
