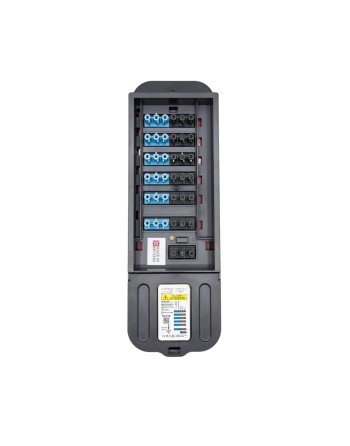

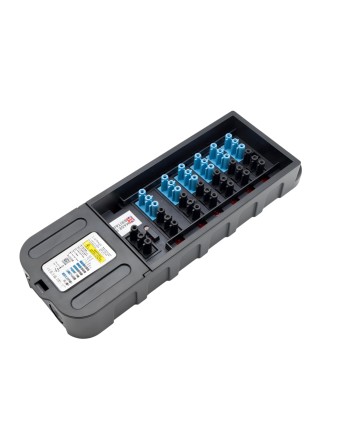

MCC5B 5 Output Dimming Centre

MCC5B is a 6 pole, 5 x luminaire output single channel device with PIR presence Connection or 3 pole absence connection.

Approvals

Request STP/BIM File

Single and dual channel MCC versions

• Single channel 4 / 5 output, for use with one sensor and one switch.

• Central Mounting points suitable for mounting onto solid substrates, cable trays or trunking.

• Presence / absence version (as now), with 6 + 3-pole sensor connection.

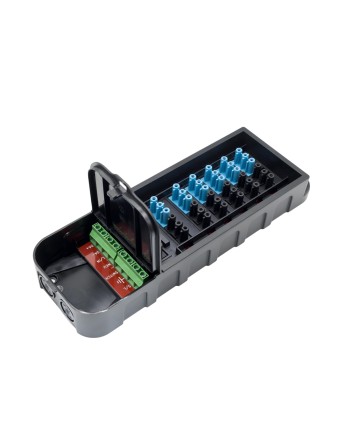

• Hinged terminal cover easily removed for quick and easy installation.

• LED indicator providing visual indication of mains present.

• Polycarbonate construction manufactured in Flame retardant UL94 VO material.

• Compliant to BS EN 60670-1:2005 Boxes & enclosures for electrical and similar fixed electrical installations.

Reference

Data sheet

Operating Voltage: 230V 50HZ (UK & EU)
Product Rating: 12A
Recommended Circuit Protection: 10A
Maximum Load/output: 6A
Maximum Total Load: 12A
Supply Terminal Capacity: 4.00mm²(2x1.5mm²)
Case Material: Flame retardent Polycarbonate UL94 V0
Case Finish: Lightly Sparked

Specific References

Download

DoC MCC and MDCC

Download (149.87KB)

DoC MCC Plugs

Download (156.47KB)

MCC5B Datasheet

Download (413.17KB)

RFA File

Download (1.28MB)

MCC5B Wiring Diagrams

Download (634.03KB)
