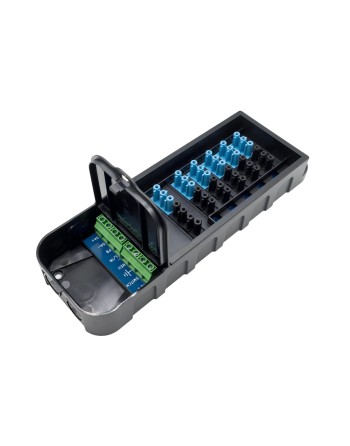

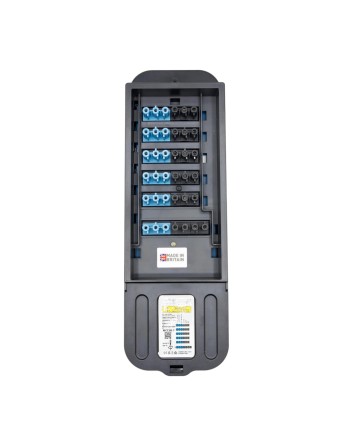

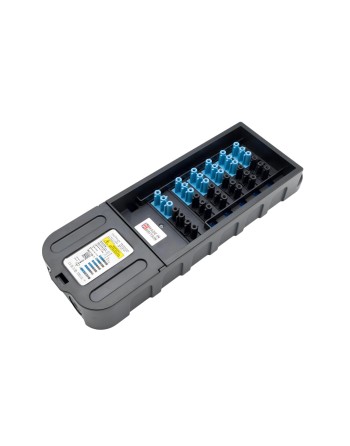

MCC5B-7 5 Output Dimming Centre with dedicated 7 Pole PIR connection
MCC5B-7 is a 6 pole, 5 x luminaire output single channel device with a dedicated 7 pole PIR presence or absence connection.
Approvals
Request STP/BIM File
Single channel MCC version
• Single channel 4 / 5 output, for use with one sensor and one switch.
• Central Mounting points suitable for mounting onto solid substrates, cable trays or trunking.
• Presence / absence version (as now), with 6 + 3-pole sensor connection.
• Dedicated 7-pole version for presence and absence application.
• Hinged terminal cover, easily removed for quick and easy installation.
• LED indicator providing visual indication of mains present.
• Polycarbonate construction manufactured in Flame retardant UL94 VO material.
• Compliant to BS EN 60670-1:2005 Boxes & enclosures for electrical and similar fixed electrical installations.
Data sheet
- Operating Voltage
- 230V 50HZ (UK & EU)
- Product Rating
- 12A
- Recommended Circuit Protection
- 10A
- Maximum Load/output
- 6A
- Maximum Total Load
- 10A
- Supply Terminal Capacity
- 4.00mm²(2x1.5mm²)
- Case Material
- Flame retardent Polycarbonate UL94 V0
- Case Finish
- Lightly Sparked
Specific References
Array
MCC5B-7 is a 6 pole, 5 x luminaire output single channel device with a dedicated 7 pole PIR presence or absence connection.
