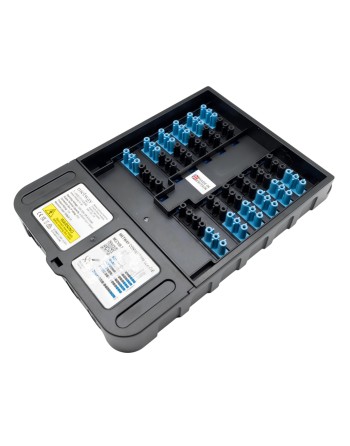

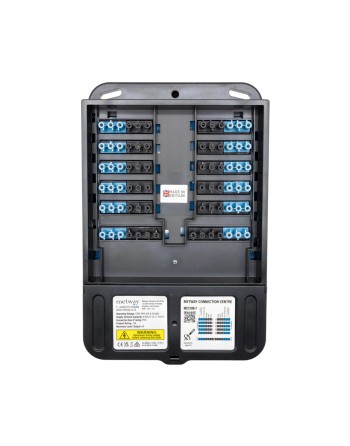

MCC10B-7 10 Output Dimming Centre with dedicated 7 Pole PIR connection
The MCC10B-7 features ten 6-pole outputs for luminaires and two 7-pole connections for presence and absence detection.
Approvals
Request STP/BIM File
Single and dual channel MCC versions
• Dual channel up to 10 output, for use with one / two sensors and one / two switches.
• Central Mounting points - suitable for mounting onto solid substrates, cable trays or trunking.
• Presence / absence version with 6 + 3-pole sensor connection.
• Single 7-pole version for presence and absence application.

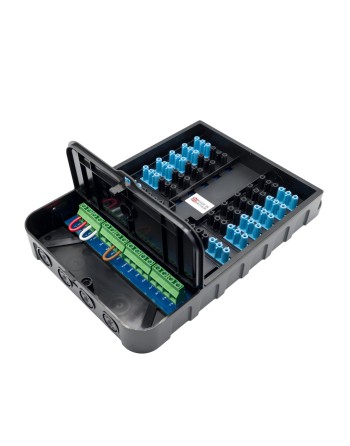

• Hinged terminal cover design for easily removed for quick and easy installation.
• LED indicator provides visual indication of mains present.
• polycarbonate construction Tough material manufactured in Flame retardant UL94 VO material.
• Compliant to BS EN 60670-1:2005 Boxes & enclosures for electrical and similar fixed electrical installations.
Data sheet
- Operating Voltage
- 230V 50HZ (UK & EU)
- Product Rating
- 10A
- Recommended Circuit Protection
- 10A
- Maximum Load/output
- 6A
- Maximum Total Load
- 10A
- Supply Terminal Capacity
- 4.00mm²(2x1.5mm²)
- Case Material
- Flame retardent Polycarbonate UL94 V0
- Case Finish
- Lightly Sparked
Specific References
Array
The MCC10B-7 features ten 6-pole outputs for luminaires and two 7-pole connections for presence and absence detection.
