CP LCM Leads
Metway can provide leads for other manufacturers lcms, such as CP Electronics.
The LCM lead is supplied with a 6-pole latching plug, to a free end on 1.00mm² LS0H cable.
This can be supplied in a variety of cores, and length as per your requirements.

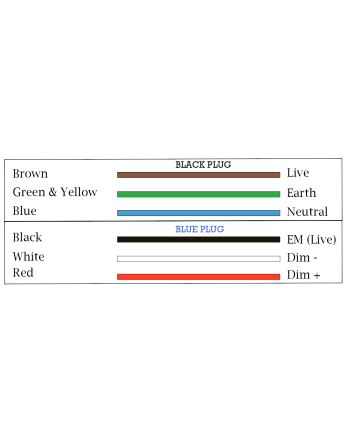

These are provided with a black/blue industry standard connector coding.
Approvals
Request STP/BIM File
CORE LEADS (Dim 1 and Dim 2 )
CPL623BW - 3 metres.
CPL625BW - 5 metres.
CPL627BW - 7 metres.
3 CORE LEADS (Live, Earth and Neutral)
CPL633BW - 3 metres.
CPL635BW - 5 metres.
CPL637BW - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
CPL643BW - 3 metres.
CPL645BW - 5 metres.
CPL647BW - 7 metres.
5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)
CPL653BW - 3 metres.
CPL655BW - 5 metres.
CPL657BW - 7 metres.
6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
CPL663BW - 3 metres.
CPL665BW - 5 metres.
CPL667BW - 7 metres.
We can provide leads in various lengths and conductor sizes.
Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).
We can also offer ultrasonic welded leads.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.00mm LSOH white
- Prepared
- Outer sheath stripped 70mm inner cores stripped and ferruled
- Connector Rating
- 20 amps
- Latching
- Single side latching
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- Vitesse or Vitesse Plus
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
