MCC6PB MCC Connection Centre Plugs
Our MCC6PB plug can be connected to either our MCC Connection Centre and MDCC Standalone DALI LCM.
These are supplied with a black/blue industry standard, connector coding.
Alternatively there is an option for black/grey connectors, and red covers.
Approvals
Request STP/BIM File
Product Codes:
MCC6PB - 6 pole black/blue plug with black cover.

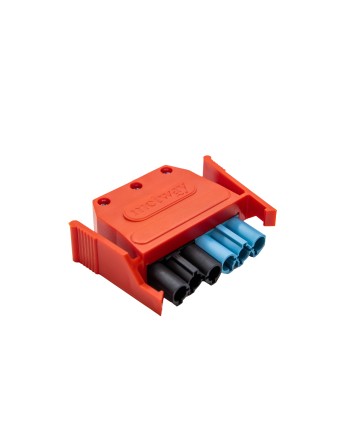

MCC6PBR - 6 pole black/blue plug with red cover.
MCC6PG - 6 pole black/grey plug with black cover.
MCC6PGR - 6 pole black/grey plug with red cover.
Data sheet
- Mouldings
- Nylon 6.6 (PA6/6), Black/Blue Or Black/Grey Cover and baseplate is Polycarbonate ABS mix
- Current Rating
- To EN 61 984: 16A / 250v At 70oC To EN 60 320: 16A / 250v At 70°C
- Protection Class
- IP20 IP40 When Connected
- Inserts
- Brass, Tinned
- Contact screws
- M3 Steel, Zinc Plated, Chromed
- Moulding Screws
- C2.9 Steel, Zinc Plated, Chromed
- Screw tightening torque
- Contacts: Max: 0.3 Nm Mouldings: Max 0.4 Nm
- Temp. limits
- Max Short Term: 160°C Continuous: 100°C
- Conductor size
- 1.5mm2 - 2.5mm²
- Wire stripping length
- 7mm
- Voltage Rating
- See Approvals
