4 Pole Tee Module Spider Leads
The 4 pole 166G Classic range is Metway's standard connector for non-dimming protocols and is compatible with a range of various switching modules. Combining the Metway switching and tee modules with the following lead assemblies means any non-dimming operating system can quickly and easily be achieved.
The 166G type of connectors are designed for mains connection according to EN 61 984 (connecting and disconnecting under load) and used in installation systems when using the latching covers or locking slides (VDE 0628).
Moulding are halogen free, self-extinguishing and low fuming.
Approvals
Request STP/BIM File
3 CORE LEADS (Live, Earth and Neutral)
SLPG431530WL-001 - 3 metres.
SLPG431550WL-001 - 5 metres.
SLPG431570WL-001 - 7 metres.

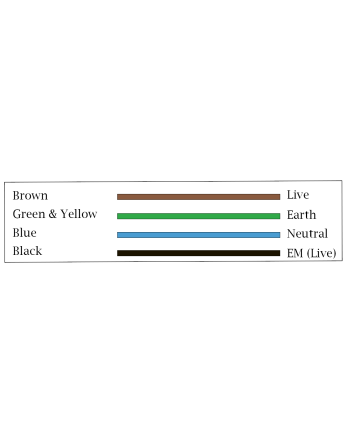

4 CORE LEADS (Live, Earth, Neutral and EM Live)
SLPG41530WL-001 - 3 metres.
SLPG41550WL-001 - 5 metres.
SLPG41570WL-001 - 7 metres.
We can provide leads in various lengths and conductor sizes.
Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).
We can also offer ultrasonic welded leads.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.5mm LS0H white as standard. Black cable can be supplied as an alternative.
- Prepared
- Outer sheath stripped 70mm Inner cores Stripped and ferruled
- Connector Rating
- 20 amps
- Latching
- Centre Latching
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- 4 pole G type plug and remote tee piece
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
