6 Pole Tee Module Extender Leads
The 6 pole 'G' type range (comprising of 1x3 pole black and 1x3 pole blue connector) is the widely recognised, and Metway's standard, connector for dimming protocols and is compatible with the range of various dimming modules.
Combining the Metway tee modules with the following lead assemblies for any dimming operating can quickly and easily be achieved.
The 'G' type range of connectors are designed for mains connection according to EN 61 984 (connecting and disconnecting under load) and used in installation systems when using the latching covers or locking slides (VDE 0628)
Moulding are halogen free, self-extinguishing and low fuming.
Approvals
Request STP/BIM File
3 CORE LEADS (Live, Earth and Neutral)
ELG631530WL-001 - 3 metres.
ELG631550WL-001 - 5 metres.
ELG631570WL-001 - 7 metres.
4 CORE LEADS (Live, Earth, Neutral and EM Live)
ELG641530WL-001 - 3 metres.
ELG641550WL-001 - 5 metres.
ELG641570WL-001 - 7 metres.
5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)
ELG651530WL-001 - 3 metres.
ELG651550WL-001 - 5 metres.
ELG651570WL-001 - 7 metres.

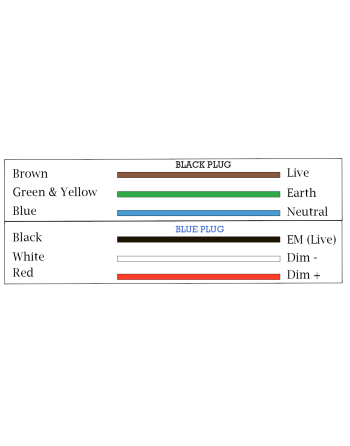

6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)
ELG61530WL-001 - 3 metres.
ELG61550WL-001 - 5 metres.
ELG61570WL-001 - 7 metres.
We can provide leads in various lengths and conductor sizes.
Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).
We can also offer ultrasonic welded leads.
Please contact our sales team for any requests.
Data sheet
- Cable
- 1.5mm LS0H white as standard. Black cable can be supplied as an alternative.
- Prepared
- Outer sheath stripped 70mm Inner cores Stripped and ferruled
- Connector Rating
- 20 amps
- Latching
- Centre Latching
- Cable Type
- LS0H ECA Fire Class DCA/CCA Fire Class available on request
- Compatibility
- 6 pole G type plug, socket and remote tee piece
- IP Rating
- IP20
- Material
- UL66
- Supply Terminal Capacity
- 2.5mm²
