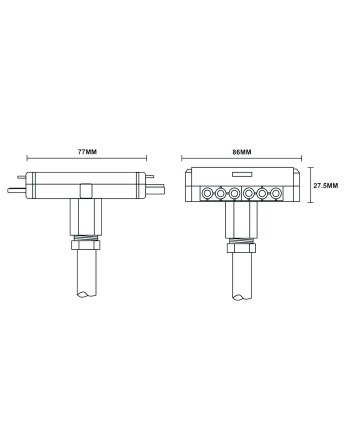

6 Pole Fixed/Remote Tee Module
The Metway "Tee" module is a key component part in the system allowing for pluggable connectivity between components. Utilising the 'G' type range of connectors and is available in two formats, fixed or remote versions, making any component quickly and easily adaptable to the Metway Wiring System.
The 'G' type range of connectors are designed for mains connection according to EN 61 984 (connecting and disconnecting under load) and used in installations systems when using the latching covers or locking slides (VDE 0628).
Approvals
Request STP/BIM File
- Quick and easy connection with GST type connectors.
- Pre-fitted cable cores/lead to enable direct fitting to luminaire or PIRs.
Product Codes:
- For Fixed tee module, the code starts with FNTM06G.
- For Remote tee module, the code starts with FNRTM06G.
Then:

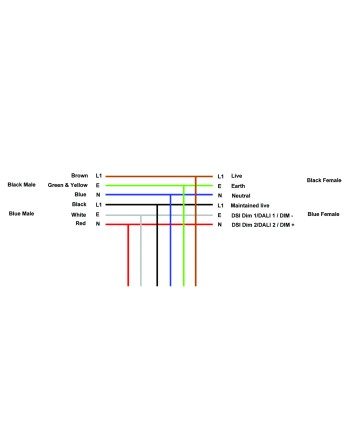

Connector colour coding:
- B for black/blue.
- G for black/grey.
Cores:
- 3 and 4
Metres:
- 1-5
Cable diameter codes:
- A = 1.00mm²
- B = 1.5mm²
- C = 2.5mm²
- D = 0.75mm²
Therefore a code FNRTM06GB-54A, would be a 6 pole 5 core 4 metre remote tee piece using 1.00mm² lsoh cable for the drop lead.
The connectors would be black/blue coding.
Data sheet
- Mouldings
- Polymide 6/6
- Housings
- Polymide 6. UL94-V0
- Continuous Working Temp
- 100°c
- Short Time Temp
- 160°c
- Current Rating
- 16A/250v at 70°c (to EN60320/EN61984)
- Upper Limit Temp
- 110°c (to EN61984)
- Protection Class
- IP20 IP40 when plugged in
- Internal Cable
- 1-50mm LSOH 6491b (BS7211)
- External Cable
- 1-50mm x 500mm LSOH singles (fixed) 1.00mm x 500mm LSOH flexible (remote)
