MDSS7S SmartSensor DALI Sensor
Our MDSS7S SmartSensor has been developed to provide a cost effective DALI sensor with a wide range of functions, coupled with a high level of performance.
Housed in a compact moulded enclosure, SmartSensor can operate as part of a managed DALI lighting network, or function as a versatile stand-alone sensor with extensive control capability.
As a stand-alone sensor, the unit is configured using a simple, user-friendly infra-red remote control, with coloured LEDs on the sensor providing feedback for all commands.
As part of a networked system, the sensor settings are managed by a DALI area controller.
Approvals
Request STP/BIM File
- Occupancy and light level sensing.
- Operates standalone or as a managed lighting system.
- Supports a wide range of control strategies.
- Very low power consumption.
- Infra-red remote control available.
- Status feedback via coloured LEDs Designed to conform to DALI2 draft standard (Draft EN 62386-301/302/304).
- Highly sensitive with advanced digital filters to give excellent resistance to false triggering.
- Designed and manufactured in Britain.
Product Codes
MDSS7S SmartSensor
ELG3207540WL-001 4 metre connecting lead from MDCC12B and MDSS7S
Data sheet
- IP Rating
- IP20
- Material
- Moulded thermoplastic, non-flammable to UL94 V0
- Voltage
- 13-21V DC via DALI bus, as per BS EN 62386-101:2014
- Operating Temperature
- 0° To +50°C

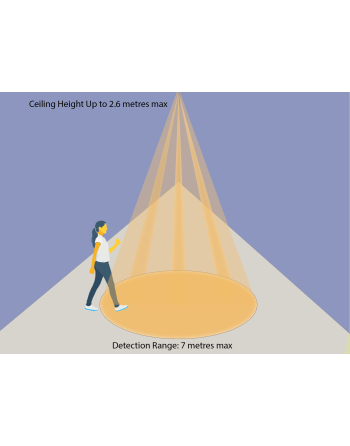

- Detection Range
- Max. (Ø x H) 7m x 2.6m
- Detection Angle
- 360°
- Current Consumption
- less than 2.5mA (max normal operation), less than 1.5mA (typical) 7mA (max commissioning mode)
- Presence Detection
- Dual-element Pyroelectric detector, 3 stage digital filter
- Light Level Detection
- Digital light sensor, 0-60,000 lux, 2 lux steps
- Cutout

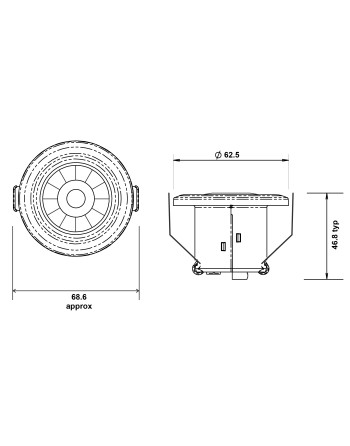

- 44mm
