MWDD Dimming Microwave Sensor
The MWDD is a 360° dimming microwave sensor.
Designed with a low profile for aesthetically demanding architectural projects providing a high quality sensor for simple on / off occupancy control or providing semi-automatic (absence detection) control.
An intelligent photocell is also included to prevent switching of the lights when natural daylight is available.
Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices.
Approvals
Request STP/BIM File
Store settings in the remote for easy commissioning when programming multiple sensors Intelligent photocell – lights and sensors only operate when needed, natural light has priority Manual override Can be configured in presence or absence mode Hold time can be configured using the internal rotary switch, if you do not wish to purchase the programmer MPROG 5 year warranty This can be provided as a standalone part, or provided with a lead and plug (Part number will differ depending on plug/area range used).
Product Codes
MCCMW03BDAP Presence sensor fitted with 3 metre lead. Used with MCC LCM.
MCCMW03BDAPA Absence sensor fitted with 3 metre lead. Used with MCC LCM.
MWDD-BESA Presence sensor fitted with connecting lead for Besa socket.
MWDD-RTMB1 Presence sensor fitted with remote tee for corridors.
MWDD Standalone sensor.
Data sheet
- Voltage
- 220~240VAC 50/60Hz
- Operating Temperature
- -20 to +50°C
- Operating Temperature
- -20°C To +50°C
- Stand By Power
- Less than 1W
- Warming-Up
- 20s
- Sensor Principle
- High Frequency Microwave
- Operation Frequency
- 5.8GHz +/- 75MHz
- Transmission Power
- Less than 0.2mW

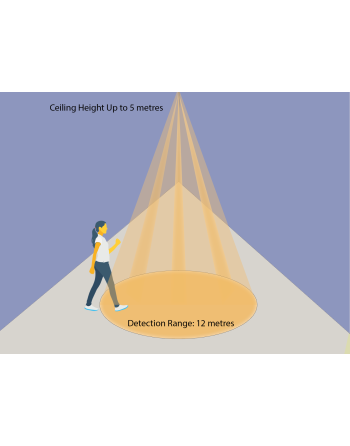

- Detection Range
- Max. (Ø x H) 12m x 6m
- Detection Angle
- 360°
- EMC Standard
- EN55015, EN61000
- Safety Standard (LVD)
- EN62479, EN60669-1, EN60669-2
- Radio Equipment (RED)
- EN300440, EN301489, EN62479
- Certification
- Semko, CB, CE, EMC, RED, RCM
- Switched Power
- Maximum 20 devices at 40mA
