MDABS DALI Batten Sensor
The MDABS is a 360° DALI high-bay sensor, that can be mounted to a batten type luminaire. There is a daylight sensor built-in, the sensor is programmed using the remote controller MPROG.
Approvals
Request STP/BIM File
Energy Saving.
IP65 luminaire mounted.
Built in daylight sensor.
Remote control programming.
Suitable for low temperature environments.
5 year warranty.
Suitable for high bay applications (up to 15 metres).
30mA DALI broadcast output.
Data sheet
- IP Rating
- IP65
- Voltage
- 220~240VAC 50/60Hz
- Operating Temperature
- -35° To +50°C
- Stand By Power
- Less than 0.5W
- Warming-Up
- 30s
- Sensor Principle
- PIR Detection

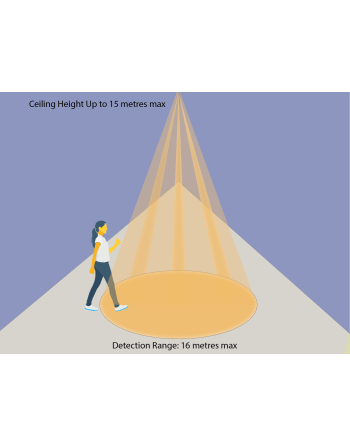

- Detection Range
- 16 metres maximum
- Detection Angle
- 360°
- EMC Standard
- EN55015, EN61000-3-21-3-3, EN61547
- Safety Standard (LVD)
- EN61347-1, EN61347-2-11
- Certification
- ENEC, CE, EMC, LVD, RCM
- Mounting Height
- 15 metres maximum
- Output
- 30mA, 16VDC maximum of 15 devices
Specific References
Array
The MDABS is a 360° DALI high-bay sensor, that can be mounted to a batten type luminaire. There is a daylight sensor built-in, the sensor is programmed using the remote controller MPROG.
